Phone Booth For Sale -Office Pod Supplier In China

Onmuse / Model SP-2

Our SP-2 model is a versatile solution designed to cater to both office and home office needs. This model is meticulously engineered with a focus on soundproofing and easy installation.

The side panel of the SP-2 model is constructed with a double layer of metal plate, filled with a special sound-absorbing material. With a thickness ranging from 48mm to 50mm, this robust construction significantly reduces noise, creating a quiet and productive environment for your work.

For added soundproofing, the pod is equipped with specially made glass on both the front and back sides. This unique glass design combines hollow glass with laminated glass, providing excellent noise reduction in both high and mid-frequency ranges. In addition to its superior soundproofing capabilities, this glass type offers higher safety standards compared to traditional tempered glass.

The side panels of the SP-2 model are 80mm thick, contributing to the pod's sturdy and durable structure. Despite its robust design, the installation process is straightforward and quick. It takes just 2-3 people approximately 30 minutes to assemble the S POD.

Moreover, the door of the pod is designed with a European standard profile, allowing for an efficient installation process that takes no more than 1 minute. This thoughtful design ensures that setting up your new workspace is as hassle-free as possible.

Attrs

Small POD 1000x1200x2200 total weight 340kg
M POD 1500x1200x2200 total weight 390kg
4 Pax 2200x1600x2200 total weight 440kg
6 pax booth 2200x2200x2200 total weight 480kg
Outer frame with 6 color options
Interior with 20 color options(acoustic panel)
Noise Isolation Class of 33DB and Dsa=31.6DB

We can customeize the size of Pod

The space and size of each office varies, sometimes requiring the customization of the Office Pod dimensions to make the entire office appear more harmonious and unified. In such cases, we need to customize our Office Pod according to the actual needs. We can customize any size, with no minimum order quantity (MOQ) restrictions.

Modular Office Pod

The tabletop style can be tailor made.

For the unit's Privacy Pod, the internal space is not large. To maximize the use of the internal space, the tabletops of such types are usually foldable. For the S Booth, we offer two types of tabletops, one is foldable as shown in the picture, and the other is fixed, specifically, you can refer to our SP-1 model. In addition, the size and color of the tabletop can be customized, with no minimum order quantity (MOQ) restrictions

Office Pods Soundproof

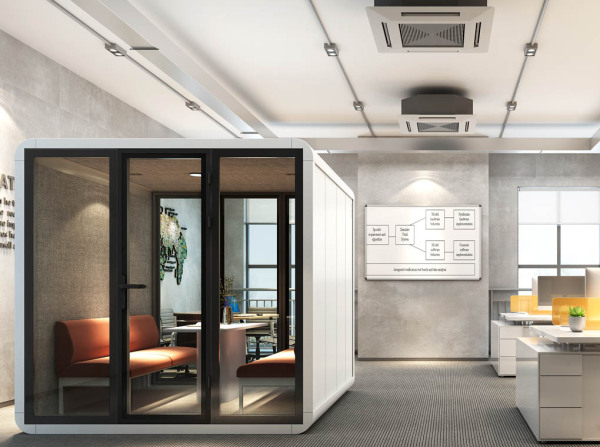

Office sofa and table for 4pax or 6pax phone booth

For four-person and six-person phone booths, the interior is usually used as a small acoustic meeting pod. The interior furniture of these two sizes is the same, the difference lies in the size of the sofa and table.

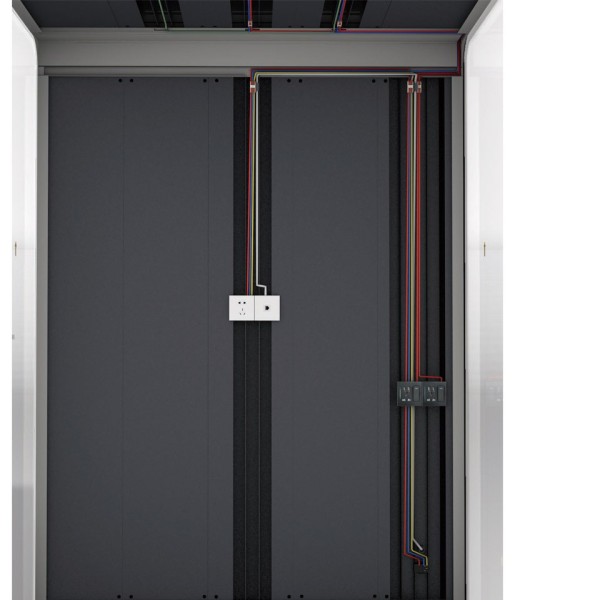

Office Pods interior structure and wiring layout diagram

Office Pods side panel circuit distribution diagram

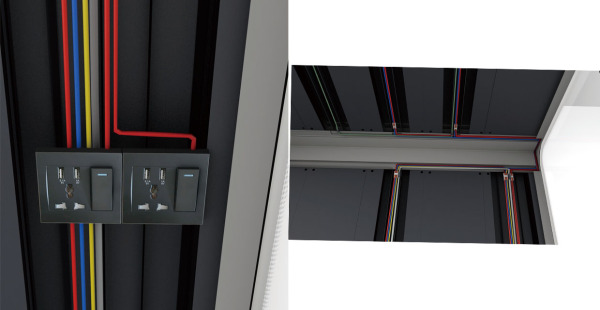

This is the overall circuit diagram of the Office Pods side panel. All the wires are pre-installed in the side panel, which makes the wiring process very convenient and fast. Each wire is equipped with a connector, as shown in the picture, and you just need to plug the wire into the connector. For 4pax office pod, the wiring process can be completed within five minutes.

The handle of the glass door adopts the multi-point lock design of the aluminum door and window.

The handle of the glass door adopts a European standard design, which is highly versatile and comes with a protective installation device. This handle is made of all-aluminum alloy, a material known for its extreme durability, resistance to damage, and long service life.
In accordance with door and window standards, we have adopted a two-layer rubber strip design. When the door is closed, a gentle push on the handle will press the door leaf tightly against the rubber strip on the door frame, forming a good seal. This can effectively isolate noise, resulting in better sound insulation.
Our office pod offers excellent sound insulation, providing users with a quiet and comfortable working environment

Office privacy pod hinge loading compacity 200kg/hinges

This heavy-duty hinge is designed and manufactured according to European standards. It is made of all-aluminum material, which is known for its durability, lightness, and excellent corrosion resistance, maintaining good performance in various environments.
The surface is treated with fluorocarbon paint, a coating known for its bright and delicate colors that can enhance the overall aesthetics of doors and windows. At the same time, it also increases the product's scratch and wear resistance, further improving the hinge's lifespan.
Its load-bearing level is very high, with a single hinge capable of supporting up to 200kg. This means that each door using three hinges can theoretically support up to 600KG.
The design of this hinge is very convenient and suitable for all European standard slots. The installation process is very straightforward. Simply place the hinge into the European standard slot of the door frame or door leaf, then tighten the screws. No professional tools or complex installation steps are needed.
The gap between the hinge and the door is 2mm. This design ensures the smooth opening and closing of the door while also preventing collision noise when the door is closed, improving the user experience.
The hinge's pivot is made of solid stainless steel, with a diameter of 12MM. This material and size design ensures the stability and durability of the hinge, as well as the smooth opening and closing of the door.

The glass door hinges details

This hinge contains ball bearings and lubricating oil inside, the combination of which allows the hinge to maintain an extremely quiet performance during rotation. Whether opening or closing the door, it will not produce harsh noise, providing users with a quiet and comfortable use environment.
The side of the hinge is designed with an adjustment screw. By adjusting this screw, users can freely adjust the gap between the door leaf and the door frame.
The standard color of the hinge is black, which coordinates with the color of the door frame and gives a sense of stability and low-key. We also have other color options, such as white, silver.

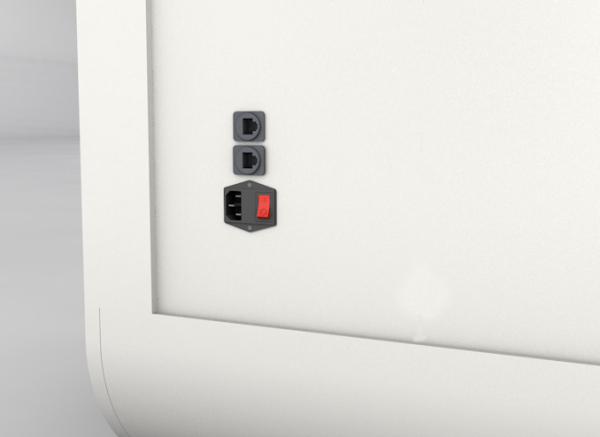

Telephone booth external power socket and network socket

This is our external power socket and network socket, both of which are pre-installed in our factory. The standard length of the power cord is 3 meters, and any special requirements should be specified when placing the order. The type of power socket is configured according to the customer's needs, as the pin configuration for power cords varies by country.

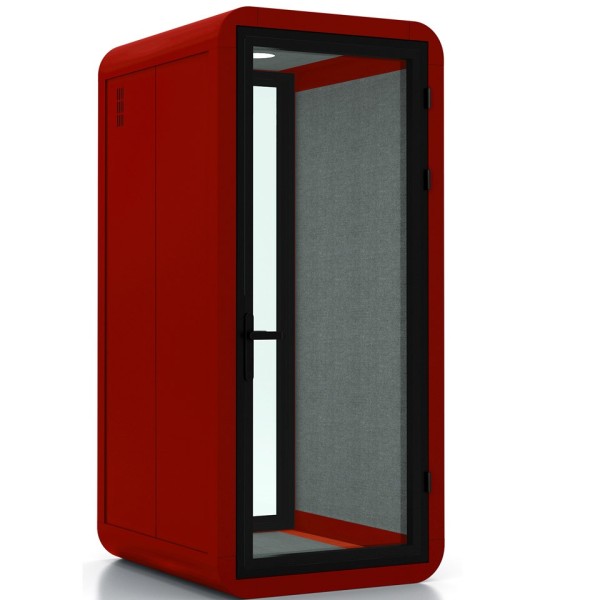

S booth Noise Isolation Class of 33DB and Dsa=31.4DB

Small size phonebooth with SGS certification.
External size -----------1000Wx1159Dx2200H Inside dimension 840Wx1024D*2040H
Overall weight----------330KG Net Weight 300KG
External ----------------1mm steel plate
Floor--------------------10mm carpet in 4 color options
Glass door--------------Aluminum frame with composite glass
Door handle------------Door and window hardwarehandle with PVDF painting.
Ventilator---------------21DB 90CFM equip with 2 slience fan
LED light---------------LED 4000K light source
Side Wall--------------55mm thick with double side steel and absorbing mat
Leveller----------------90H castor with adjustable leveller
Electric Socket---------2 power socket with 1 USB charging port
Tabel top --------------550Wx250Dx120H Pu Painting table top
Outside Color------------6 colour selections
Interior shade----------30 colour options

2 Person workpod

Outer size -------------1519Wx1159Dx2200H inside size 1359Wx1024D*2040H
Total weight-----------380KG Net Weight 350KG
Outer surface ---------Outer with 1mm steel plate with powder coating finish
Floor-------------------10mm carpet with 4 colour selections
Glass Door-------------Laminate or hollow glass
Handle-----------------Door and window hardwarehandle with PVDF painting.
Ventilator--------------21DB 90CFM quiet fan 2pcs
LED light---------------One pieces of 4000K LED light source
Side panel-------------55mm thickness with full-frequency sound absorbing material both side with steel panel
Castor-----------------90H castor with adjustable leveller
Plug Socket-----------2 power socket with 1 USB charging port
Furniture --------------without furniture
Outside Colour--------6 colour choice
Inner colour-----------30 colour options

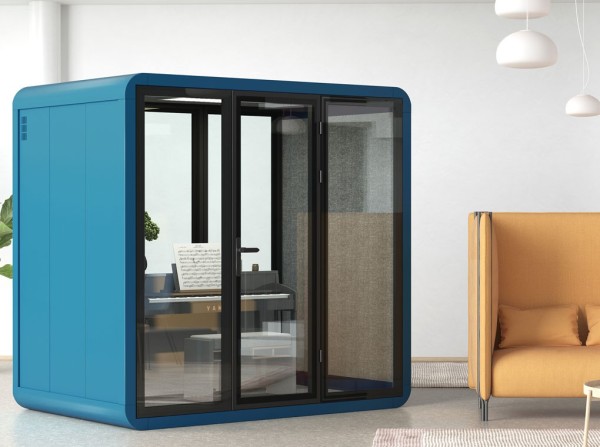

4 Pax office pod

Total dimension--------2200Wx1559Dx2200H Innner size 2040Wx1440D*2040H
Overall weight----------430KG Net Weight 400KG
Outer material ---------1mm steel with power coating finish
Bottom Floor-----------10mm carpet with 4 colour options
Glass Door-------------composite 3 or 4 layer glass
Door Knob-------------Handle of aluminium die casting finished with PVDF paint
Airflow device---------21DB 90CFM Low-noise fan 4pcs
LED Light---------------Two 4000K LED light emitting sources
Side panel--------------Full-frequency sound insulation material with a 55mm thickness
Ground leveler----------90H adjustable leveller with castor
Wall Outlet-------------2 power socket with 1 USB charging port
Furniture --------------With small meeting table 900Wx500Dx750H
Outside Color----------6 color options
Inside colour----------30 color options

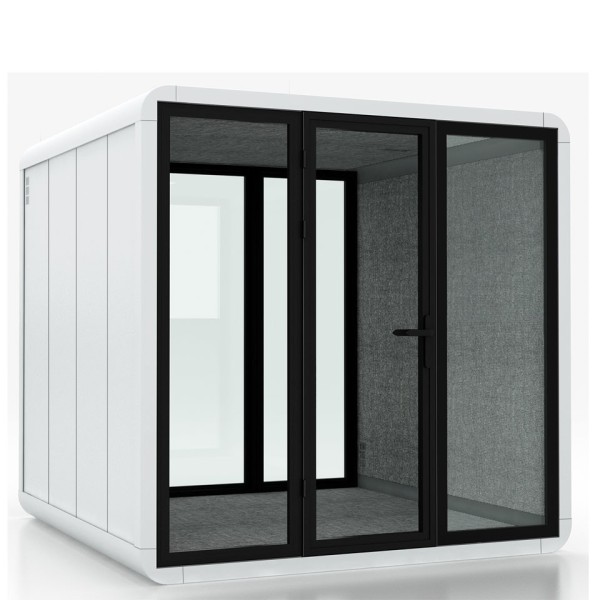

XL phone booths for sale

Pods dimensions------2200Wx2200Dx2200H inside dimensions 2040Wx2040D*2040H
Whole weight---------500KG in total and Net Weight 470KG
Outer finish -----------Powder coating finish
Ground----------------Available in four colors with 10mm thick carpet
Glazed Door-----------Laminated glass or hollow glass for options
Door handle---------- Made from aluminium die casting and painted with PVDF
Air Exchanger---------21DB 90CFM Soundless fan 4 pieces
LED light-------------- 2x 4000K LED light source
Side Partition----------Sound-dampening material with a thickness of 55mm for full frequency
Adjuster----------------90H castor that includes an adjustable levelling feature
Wall Socket--------- ---Double electrical outlet with one USB charging port
Furniture ---------------With small meeting table 1200Wx600Dx750H
Outside colour----------White/Black/Red/Blue/Dark grey/Yellow
Interior color----------30 color options

SGS Certification Testing Data

Single booth NIC=33DB ISO 23351 test procedures Attached are the testing data from SGS company,the testing standard it is ISO 23351 test procedures are currently the most authoritative testing standards for phone booths.

At present,our pod it is the testing data is the highest level in SGS Lab in China

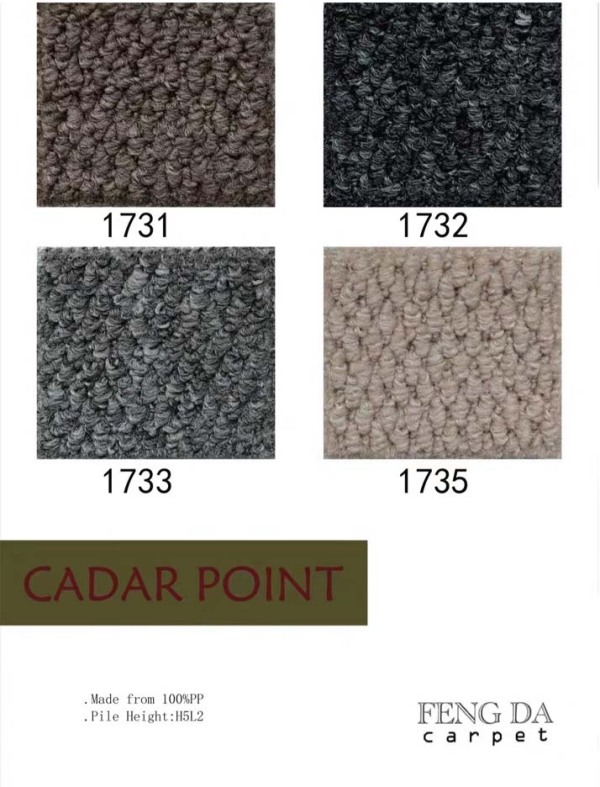

Carpet with 4 colour options

We have a total of 4 color options for our carpets, with a thickness of 10mm. Among these colors, the code 1731# is in stock, while the other colors need to be customized. All our carpets have passed the VOC test. We have professional equipment to remove the smell of the carpets.

Interior with 34 color options

The thickness of acoustic panel is 12mm, and we offer 34 colour options for customer to choose from, each of them we have enough stock,and our acoustic panel passed VOC test which issued by SGS company. and it with an excellent texture,and giving a high end feeling.
These acoustic panel have excellent sound absorption performance,which can absorb most of mid to high frequency noise,thereby greatly improving the soundproof performance of the office pods.

Office Pods For Sale

The packing image of the acoustic pod

In order to better protect our products, we use reinforced honeycomb boards for packaging, and the bottom is made of 18MM plywood into a wooden crate, which is very convenient for loading or unloading. Each set of office pod will be placed in a packaging box, and the load-bearing capacity of the entire box can reach 1200KG.
This type of packaging ensures the safety of the product during transportation, preventing damage caused by collisions or falls.

Office Phone Booth For Sale

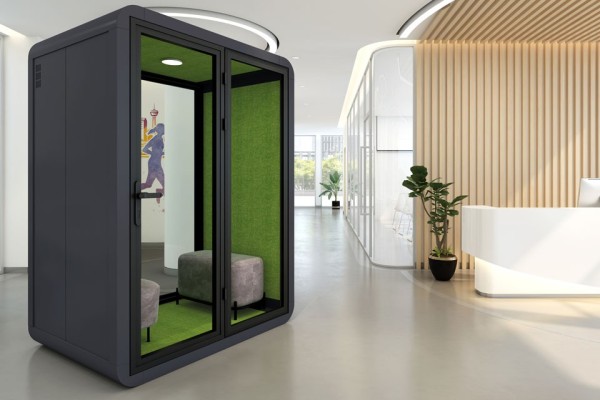

Application scenarios

Our phone booth can be applied in various different locations.For example, In libraries, it can provide a soundproof space for readers seeking a quiet reading environment, In Offices,it can offer a seclueed environment for employees who need to make private calls or video conferences. In shopping malls,it can provide a quiet space for customers who need a short rest or need to make a phone call. At train stations or airports,it can offer a space for passengers waiting for their transportation to rest or make a phone calls. These are all application scenarios for our phone booth
